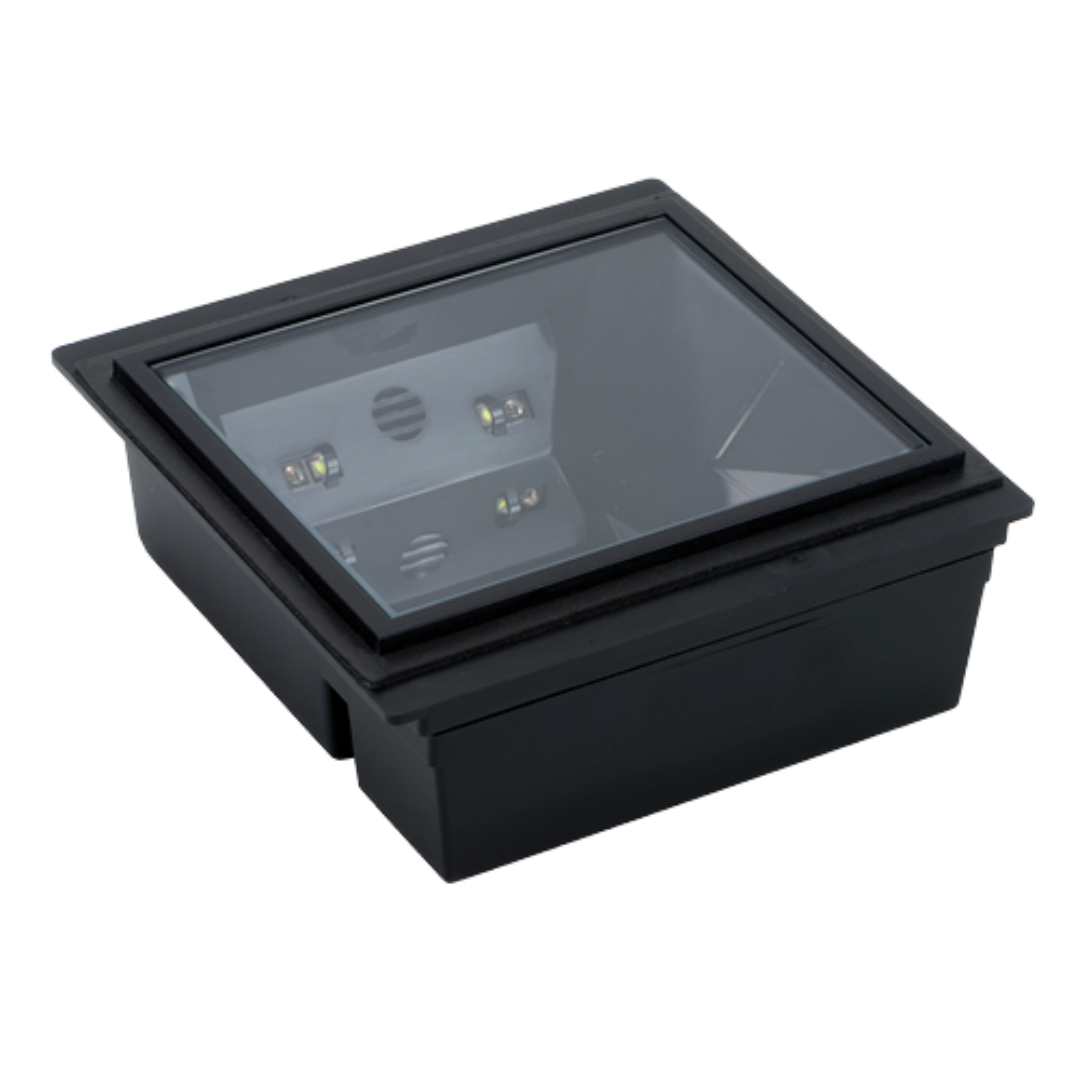

HID TripTick 220

(In stock)

OEM barcode, NFC and cEMV ticket reader

Key Applications:

Ticket validation for public transport, car parking, stadiums and events
Financial and other self-service kiosks
Retail POS terminals
Casino and TITO gaming machines

Key Features:

Contactless payments: works with all popular contactless cards and has cEMV – L2 Certification (VISA, MasterCard, AMEX, JCB, Discover) and PCI SRED – V5.0
Barcode reading: reads 2D, PDF417 and linear barcode symbologies
Low profile: only 36.9mm high with a single cable connection to host computer
IP67 sealed: front face sealed for integration into indoor/outdoor kiosks and gates
Reads any media: optimized focal distance design improves read performance for all media
Designed for frontline use: LED user feedback for intuitive use and uprated UltraGlass option for extreme environments
Connection options: USB (HID, serial or keyboard), RS232, RS485, Ethernet interface options
Power over Ethernet: option

Pricing

Category:HID Products Brand: HID

Description
Reviews (0)

The TripTick 200 from HID is a compact and high-performance RFID reader. It is designed for fast and secure contactless credential reading. The HID TripTick 220 barcode and NFC/RFID ticket reader (formerly Access-IS ATR 220), includes contactless EMV payment capability.

TripTick 220 offers EMV Level 2 certification, allowing for applications where contactless payment systems are required. It offers PCI and SRED compliance for contactless payments using VISA, MasterCard, AMEX, JCB and Discover schemes. (View the ATR220 certification via the PCI website.) In addition, the device also offers the reading of 1D/2D barcodes and RFID/NFC tickets and tokens from mobile phones, tablets, wearables, contactless cards and paper in any orientation.

TripTick offers operators the ultimate no-nonsense installation. Its small footprint, low profile, slot-in design enables easy integration into kiosks, ticket machines, turnstiles and access gates. Furthermore, its rugged water-resistant construction with no moving parts, enables it to withstand years of indoor and outdoor public access use.

An option for Power over Ethernet (PoE) allows installation without a dedicated power supply. The barcode scanning and ticket reading device is also capable of RS422 connection at up to 1500m.

TripTick retains the key aspects of the size and shape of our proven LSR116 and LSR118 products, however its design delivers a significantly increased active scan area to further improve its barcode and ticket reading performance. TripTick’s optimized imaging ensures read reliability and high-speed performance capturing and decoding of all popular linear, PDF417 and 2D symbologies.
