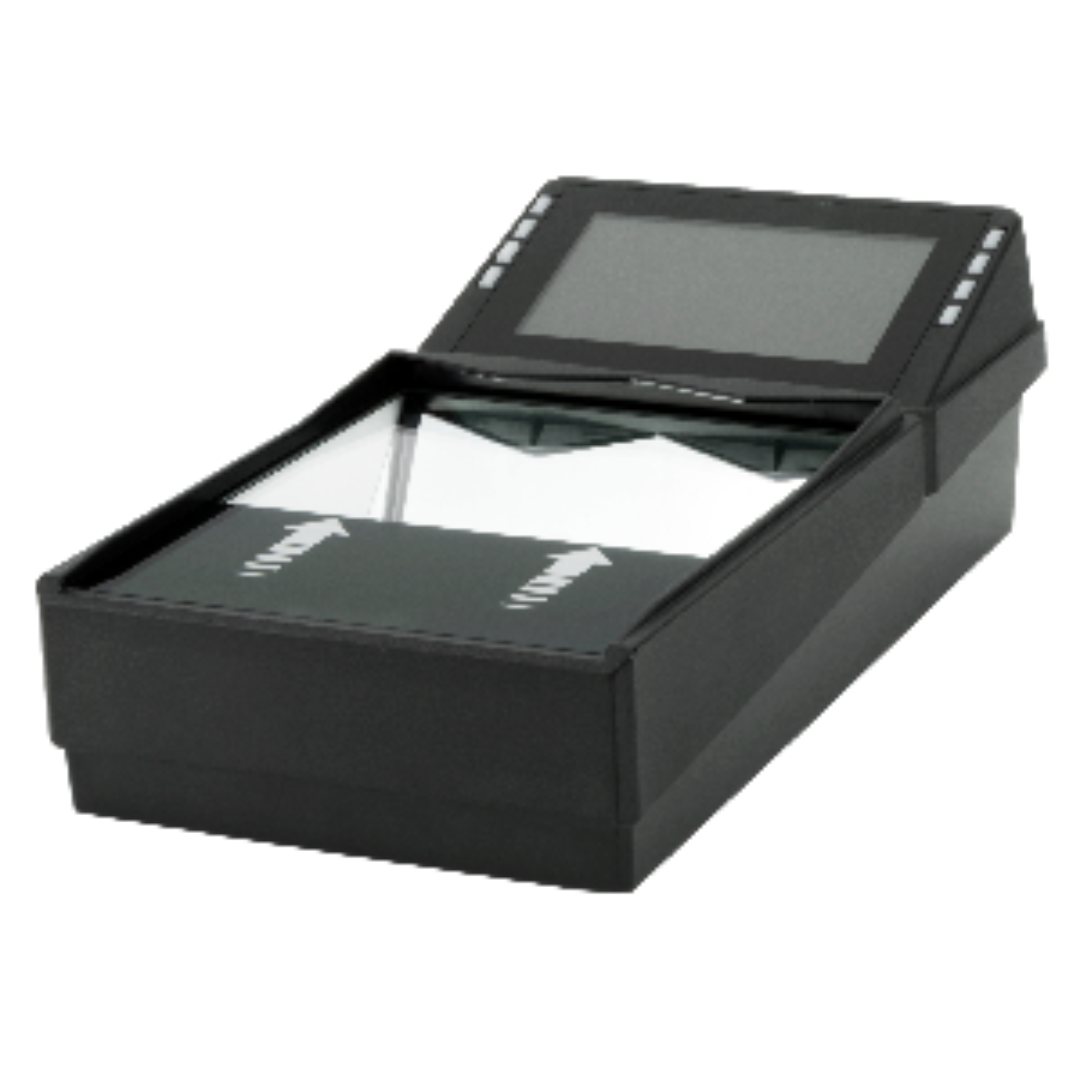

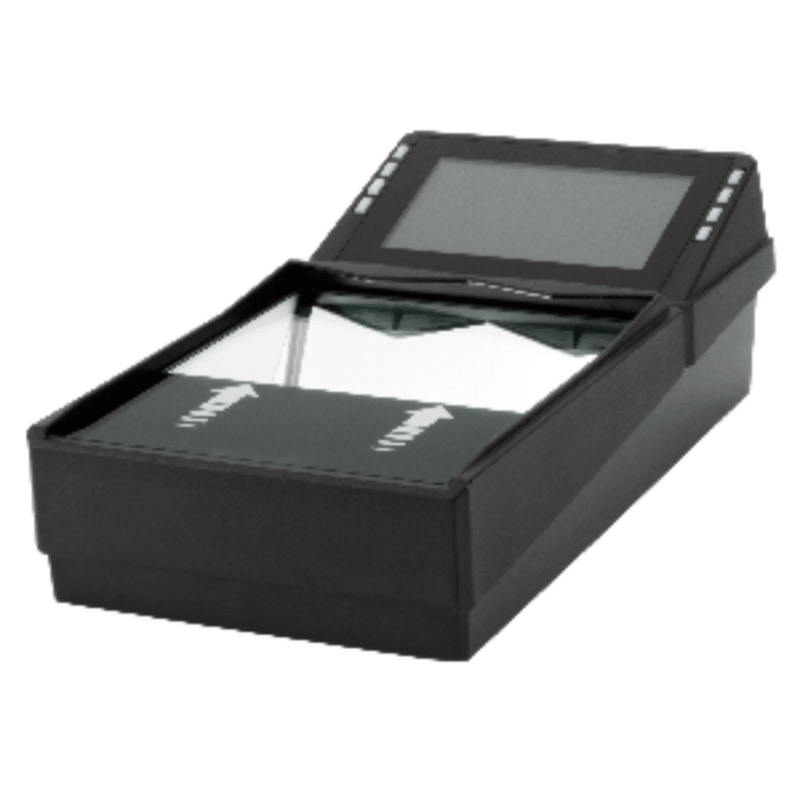

HID BGR750 Reader

(In stock)

Key Applications:

Boarding/departure gates
Check-in kiosks and desks
Pre-security staffed desks

Key Features:

Cloud connectivity option: flexible deployment without needing to connect to a PC
Rapid barcode reading: fast, omnidirectional 1D/2D barcode imager
Flexible design: available with or without an angled color LCD display
Popular symbologies: reads IATA-recommended PDF417, QR, Aztec and other 2D and linear symbologies
Flexible: wide range of emulations and connection options available
Simple Integration: RS-232, USB*, Ethernet* and Mini-HDMI* connection to host
User feedback: green and red indicator beacons and audio beeper
Receipt Printer: RS-232 serial port for receipt printer functionality
Options including: contactless/NFC capability, desk mount bracket, MRZ reading

Pricing

Category:HID Products Brand: HID

Description
Reviews (0)

The HID BGR750 Reader is a highly specialized, multi-functional device designed primarily for passenger processing and document verification in high-traffic environments, most notably airports and other transportation hubs. It’s not a general-purpose access control reader like the HID Signo or iCLASS readers we’ve discussed.

BGR stands for Boarding Gate Reader, which gives you a strong clue about its main application. It was originally developed by Access-IS (now part of HID Global).

Key Features and Capabilities:

Multi-Document Reading: This is its core strength. The BGR750 is designed to read:
- Barcoded Boarding Passes (BCBP): Quickly and omnidirectionally reads 1D and 2D barcodes (like PDF417, QR, Aztec) from paper, mobile phones, tablets, and even smartwatches. It’s often used face-down for intuitive scanning.
- Contactless/NFC Capability (Optional): It can be equipped with a 13.56 MHz RFID/NFC reader, allowing it to read various contactless smart cards and e-documents that comply with ISO 14443 Type A and B, including:
  - MIFARE Ultralight, Classic 1K, Classic 4K, MIFARE Plus
  - e-Passports (eMRTDs) according to ICAO 9303 standards, including secure data transmission features like BAC, PA, AA, EAC, and SAC.
- Passport MRZ Reading (Optional): It can read the Machine Readable Zone (MRZ) from passports and other travel documents.
- Contact Smart Card Reading (Optional): Through an expansion dock, it can support contact smart cards (ISO 7816).
- Magnetic Stripe Reading (Optional): Also via an expansion dock, it can read magnetic stripe cards.
Flatbed Design: Its low-profile, flatbed design makes it suitable for desktop use or seamless integration into countertops and kiosks.
Intuitive User Feedback: Features a color screen that displays text and instructional icons, twin banks of bright multi-color LEDs (typically green/red for go/no-go), and an audio beeper to guide users.
Connectivity: Offers various connectivity options including RS-232, USB, and Ethernet for flexible integration into existing systems (like Common Use Terminal Equipment – CUTE).
Future-Proof: Designed with the ability for remote firmware downloads to adapt to new standards and features.
Robust Construction: Built for high-volume, continuous use in demanding environments.

Common Applications in Lahore (and globally):

Airport Check-in Desks: Quickly validating boarding passes and travel documents.
Boarding Gates: Efficiently processing passengers for boarding.
Pre-Security Desks: Verifying identity and travel documents before security checkpoints.
Immigration and Border Control: Reading passports and e-documents.
Event Venues & Stadiums: For high-speed ticket validation (though often simpler barcode readers are used for basic events).
Mass Transit (Advanced Systems): For validating tickets and passes with complex data.

The HID BGR750 is a high-end, purpose-built reader for specific, demanding applications that require rapid, multi-faceted document and credential verification.
